ESD Table Mat

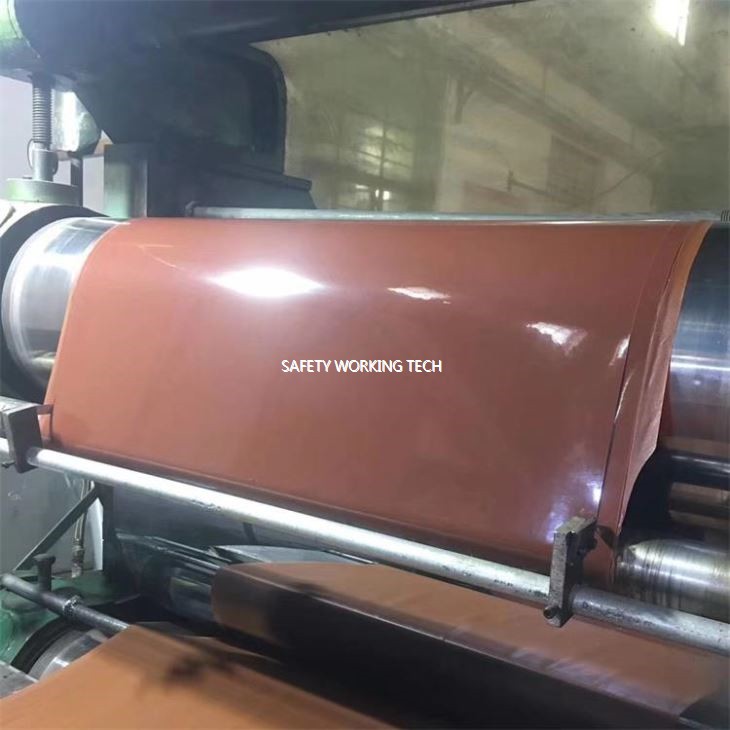

Antistatic Table MattingAntistatic table matting
Color:Brown,Green,Grey,Blue,Black or OEM
Antistatic table matting with color brown,blue,grey,green,black
1.Antistatic rubber Mat specification
●The material of the anti-static mat is mainly made of conductive material and antistatic material and synthetic rubber which dissipates static electricity. The surface layer is conventionally 0.5MM, the bottom layer is 1.5MM, and the total thickness can be made into 2MM, 3MM, etc. . The mat is used for a long time, has good acid and alkali resistance, and is easy to clean.
●Color:Dull/Shiny green,Dull/Shiny grey,Dull/Shiny green,Dull/Shiny blue, Dull/Shiny black.
●Standard size:1m*10m.1.2m*10m,0.6m*10m,0.5m*10m etc.
●Customized size: Acceptable.
●Surface resistance: 10e6-10e9Ω
●Bottom resistance: 10e3-10e5Ω
●Volume resistance: 10e5-10e8Ω
●Wear rate: 0.02g/cm2
●Electrostatic removal time: < 0.1s
●Ready stocks available or not:Yes
●Heat Resistance:300 degrees
●Elongation at break: 188%
●Tensile strength: 3.6MPA
●Tear strength: 20.6KN/M
●Impact catalytic temperature -250C: no damage
●Compression permanent rate of change Compression 25%: 17.9
2.ESD and Heat resistant testing picture for ESD rubber Mat
3.How to distinguish the quality of Antistatic table matting
The anti-static mat is mainly made of various materials by using static conductive materials, static dissipative materials and synthetic rubber.
to make. Long-lasting use, good acid, alkali and chemical resistance, abrasion resistant and easy to clean.
Therefore, the main material of the anti-static mat is rubber. Also known as butyl rubber, butyl rubber is originally a natural semi-conductive
The body has an antistatic function. Its molecular structure is composed of many carbon chains, which can store a certain amount of static electricity, which can be very short.
The time is imported into the inner layer and dissipated. The biggest function of the anti-static mat is to store a large amount of static electricity and discharge in an instant.
Conductive. The general life expectancy is about 5 years.
Now PVC is cheap, it can prevent static electricity because it is added with antistatic agent in the production. This product belongs to chemical products. It will gradually disappear after 3 to 6 months, and the electrostatic effect is getting worse.
After the above comparison, we should know which type of mat is better. We can distinguish in several ways: rebound
Sex, smell, look at the flames, look at the gray gravel, see surface scratches, softness and other methods to identify.
4.Antistatic table matting detailed images
5.Certificates for ESD table matting
TT（Telegraphic Transfer),Western Union,Paypal,or monthly statement.
1)What is the working principle of the anti-static mat?
The green surface is for storing and absorbing static electricity around the table top, and the resistance is 107~109 Ωcm;
The black bottom is a conductor, the resistivity is ≤ 106 Ωcm, because it is a conductor, it can quickly discharge the absorbed static electricity;
One end of the grounding wire is connected to the anti-static mat and the other end is connected to the ground. Therefore, static electricity is smoothly discharged to the earth through the grounding wire. This will discharge the static electricity around the desktop through this principle.
2)What service advantages do you have for this esd mat?
1.Free sample available for your test.
2.Guarantee samples quality same as mass production quality.
3. We can provide strip cutting service.
4.Competitive prices based on same quality.
5.Your inquiry related to our products or prices will be replied within 24 hours.
6.Well-trained and experienced staffs answer all your requirements in fluent English.
8.Packaging & Delivery for antistatic table matting
Packaging Details for standard size:1m*10m*2mm
