Fire resistance Anti-static Floor PVC Tiles
1.ESD tile technical data
● System resistance: 10E6 to 10E9 ohm
● Fire rating: B1
● Wear resistance: Grade 4/6000 rpm
● Water absorption: <3%
● Extreme cold and extreme heat resistance: 15℃～105℃
● No obvious cracks appear after 10 rapid cooling and rapid heating cycles
● Bending strength: average not less than 27Mpa
● Warpage: ±0.5%
● Floor size: 600×600×2mm,600×600×3mm
An anti-static floor tile is a floor tile that enables electrical charge to dissipate when it is grounded or connected to any lower potential point.

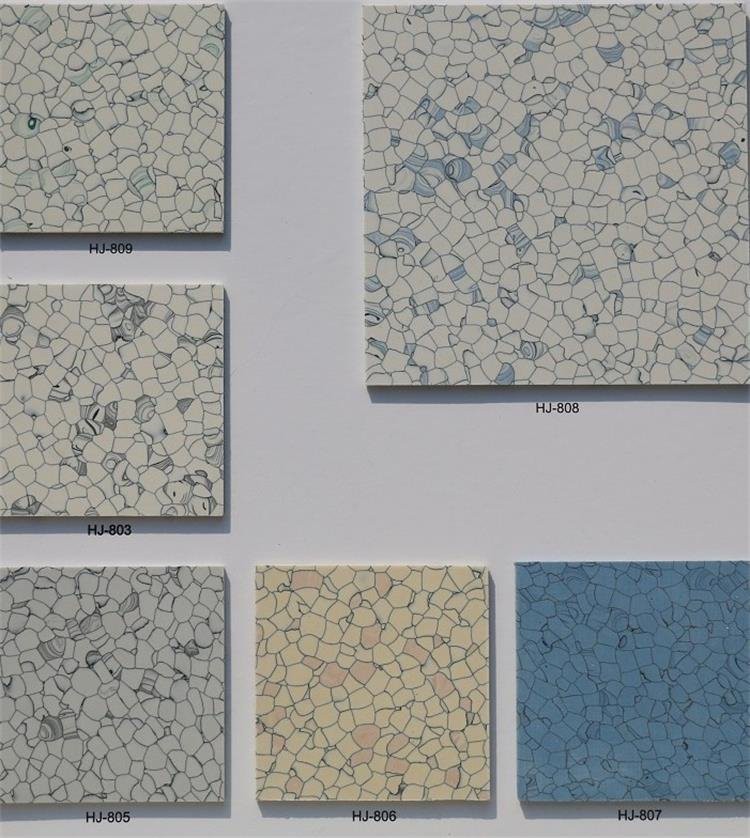

2.Color Panels
3.Certificates
4.Applications
It is suitable for the cleaning and anti-static space of the programmable computer room,computer room,power dispatching room and purification workshop of telecommunication,electronic power,microelectronics and medicine industries.
5.ESD anti-static floor installation method
1. Mobile installation: The floor and the floor are bonded together with the special connecting tape provided by the manufacturer. The floor and the floor surface are not bonded. The PVC floor can be rolled up or removed at will to facilitate movement.
2. Fixed installation: 1. Semi-fixed: special double-sided tape, the floor and the floor are bonded together with the special double-sided tape provided by the manufacturer, and the floor and the ground are also bonded together, which can effectively prevent The floor moves due to strenuous exercise, and the slits are also convenient to move the entire site in the future when necessary. 2. Partial bonding: On the ground, use the edge of the floor as the benchmark to brush 20cm of glue inward. 3. Full glue bonding: all the glue is applied on the ground to be laid.
6.Payment and Delivery
| Quantity(Square Meters) | 1 - 50 | 51 - 500 | 501 - 1000 | >1000 |
| Est. Time(day) | 3 | 10 | 15 | To be negotiated |
