TIGER-VAC Hand Held Clean Room Vacuum

The TIGER-VAC MV-1CR(HH-CC) anti-static ESD handheld vacuum cleaner is a dedicated vacuum cleaner for cleanrooms, suitable for industries such as pharmaceuticals, and features EMI protection. It is equipped with a ULPA HEPA filter, making it a high-efficiency model.

1.Product Features

The ULPA filter effectively filters 99.999% of 0.12-micron dust particles, tested by IEST RP-CC001. It filters 99.9995% of 0.18-micron dust particles, tested by IEST RP-CC001 U15 using the MPPS method, conforming to EN1822 standards. All vacuum cleaners undergo leak testing before leaving the factory.

Complies with ISO Class 4 (Class 10) cleanroom standards.

Features electrostatic discharge (ESD) protection.

EMI/RFI protection (protection against electromagnetic interference/radio frequency interference) ensures it will not interfere with computers or other sensitive electronic equipment.

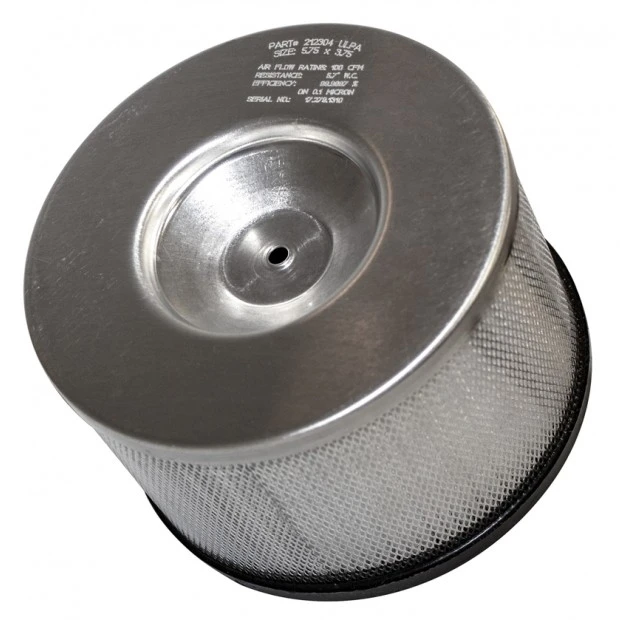

A 4-stage filtration system includes a ULPA filter (U15), a medium-efficiency filter, a pre-motor filter, and disposable filter bags.

A special filter with an inner stainless steel lining can be used to recover broken wafers and sharp objects.

Designed for environmental pollution control.

Equipped with a straight-through motor.

A dry-recovery model.

Fully constructed of SAE 304 stainless steel, providing corrosion resistance.

It comes with a convenient side shoulder strap and a carrying bag for easy movement between machines.

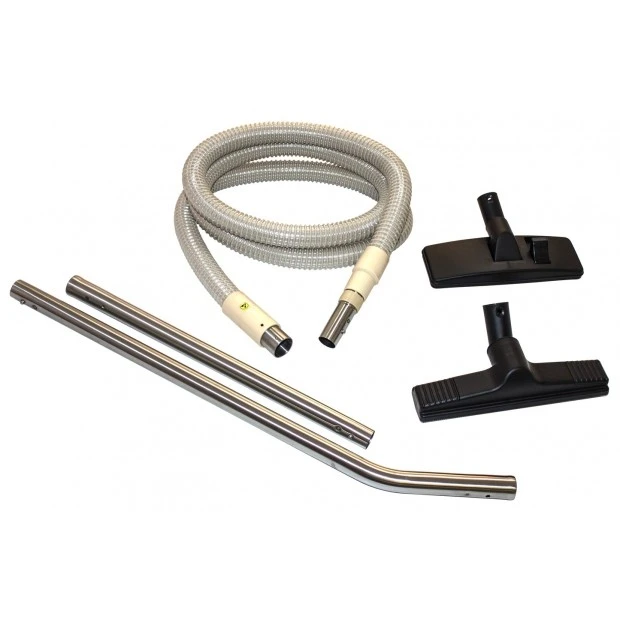

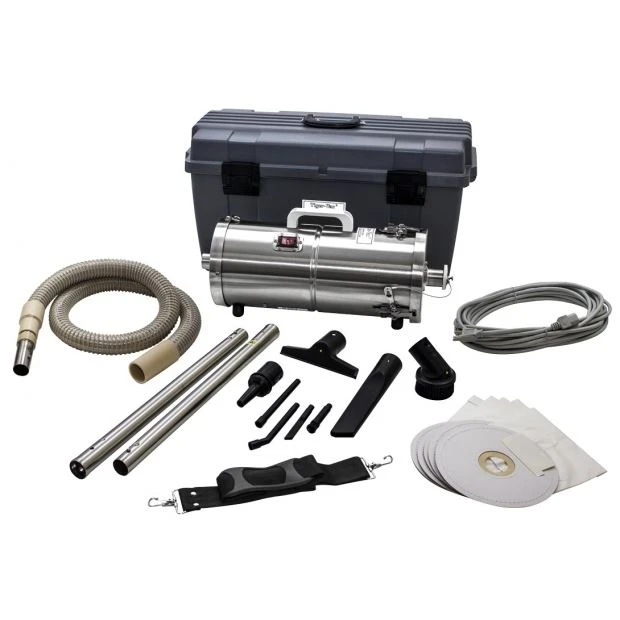

It includes a complete set of dedicated accessories.

TIGER-VAC Clean Room Vacuum

2.Specifications

Model: MV-1CR (HH-CC)
Electric/Pneumatic: Electric
Voltage: 120 V
Hz: 60 Hz
Motor: Single-phase motor
Power: 780 W
Horsepower: 1 HP
Current: 6.5 A
Airflow: 110 CFM
Vacuum Pressure: 1676 mmH2O
Noise Level: 70 dB(A)
Suction Inlet Size: 38 mm
Trolley Type: None, Handheld Model
Automatic Cleaning Function: None
Dry Cleaner Recycle Bin Capacity (Disposable Filter Bag): 1.89 L
Length: 56 cm
Width: 20 cm
Height: 20 cm
Net Weight: 5.4 kg
Power Cord Length: 10.6 m

3.How to choose HEPA/UPLA filter

HEPA (High Efficiency Filter) is made of glass fiber paper, which can effectively filter 99.97% of 0.3um fine dust particles, which is 1/300 of the diameter of a human hair. ULPA (ultra high efficiency filter) is also made of glass fiber, but its material is arranged more closely. It can filter 99.999% of 0.12um fine dust particles, which is 1/960 of the diameter of a human hair, ensuring that the discharged air is cleaner.

4.Pictures

TIGER-VAC Cleaner
