Application of electrostatic voltage tester in anti-static field
In the anti-static room work, we sometimes need to monitor the surface of the product statically, and sometimes need to perform an electrostatic field measurement on the entire workplace, which requires a very accurate and convenient measuring instrument. Today we introduce to you a Japanese imported electrostatic field test instrument, which is SIMCO FMX-004 (003 is an old model, currently Japan has been discontinued).

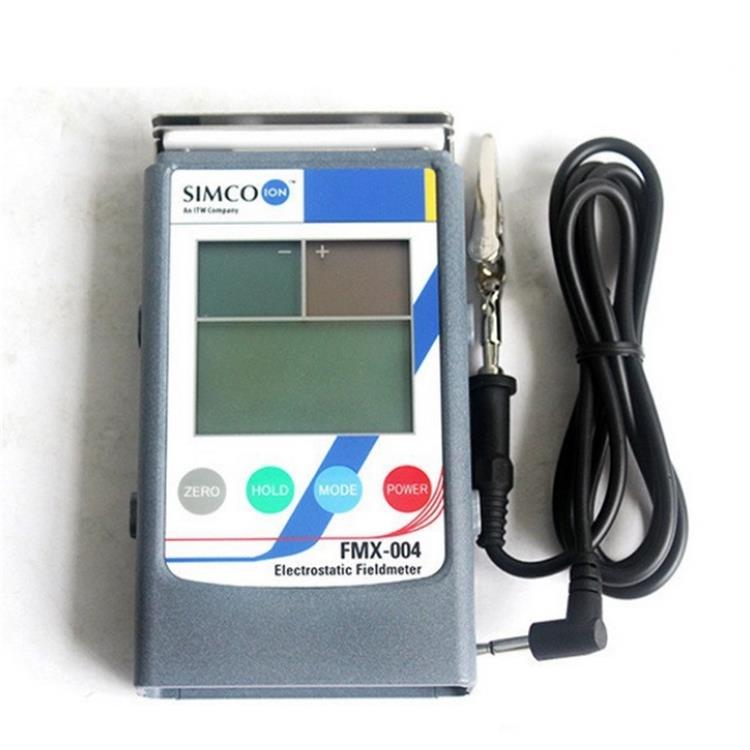

The SIMCO FMX-004 Electrostatic Field Tester is a non-contact portable electrostatic field measuring instrument that measures the electrostatic value of the surface of an object and measures the ion balance of the static elimination device. The outer casing is made of anti-static material and has a grounding buckle to ensure the measurement results are correct and reliable. The numbers and graphics are displayed clearly and clearly. In the dark environment, the light can be displayed on the bright panel. There is an ion balance measuring board to measure the residual voltage of the static elimination device, and the measuring range is +/-200V.
Function: Effectively detect ESD workplace equipment, work surface, tools with electrostatic charge.
Features: LCD / level display detection data, test data retention, digital clear display, high / low range.
Output: red LCD shows positive charge, blue LCD shows negative charge
Measuring range: (0 ~ ± 1.49kv low range), plus or minus 1kv-20kv (high range).
Test accuracy: ±10%
Power: 9V
Accuracy: Low range accuracy: plus or minus 0.1kv; high range accuracy: plus or minus 1kv
Input voltage: 9V, 6F22 manganese battery
Electrostatic field can be measured: +/- (0.00-20.0kV) (automatic display adjustment)
Standard ranging: 25mm +/- 1mm
Ion balance can be measured: +/- (0-200V)
Measuring distance according to: ESD-STM3.1-2000 lonization standard
