Anti-static table mat installation solid anti-static chuck grounding wire
Grounding is recognized as an economical and affordable method for discharging static electricity. Grounding is very important to reduce the static charge generated on the conductor. The human body is a conductor and the main source of static electricity. Therefore, it is necessary to reduce the static electricity on the human body. When the load is in contact with sensitive components, a stable and effective grounding wire is very important.
The same is true for the grounding device of the workbench. The surface of the conductive or static dissipative workbench is an indispensable part of the static installation workbench, especially those where products are assembled by hand. When using an anti-static wrist strap, a good grounding is required. , The grounding of the dust-free work surface connected to a common point requires good stability. When the conductive or static dissipative materials generate static charges, a good grounding can effectively discharge static electricity.
The electrostatic grounding point in any environment must be carefully implemented to ensure its stability. If the grounding point is loose, it may fail. The connection point of the grounding wire should be tightened by bolts. It is ideal to prevent the occurrence of bad phenomena and let the grounding point be connected to the ground. Form a conductor.

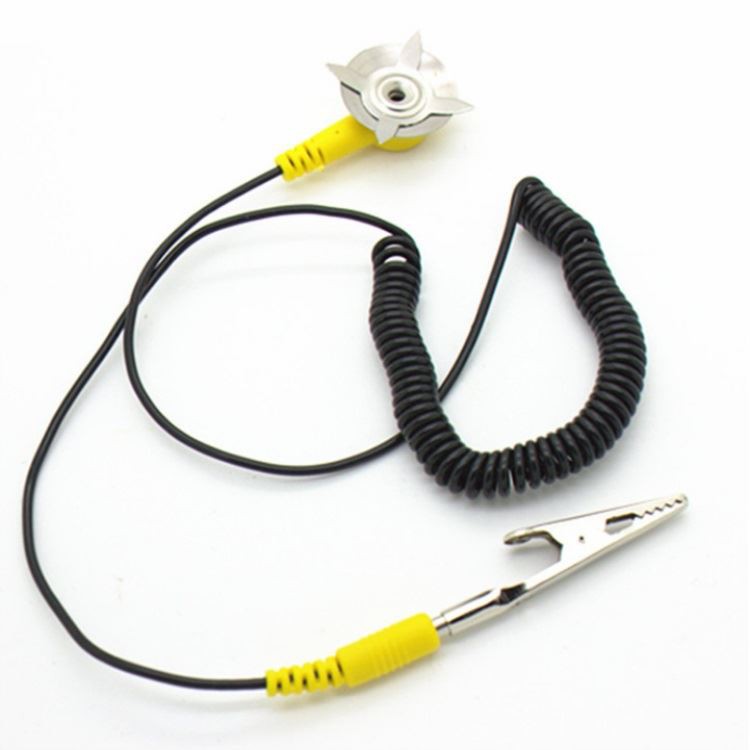

Anti-static table mat installation solid anti-static chuck grounding wire:
Anti-static chuck grounding wire parameters:
1. Wire diameter: 2.4mm
2. Cable length: The general standard is 2 meters (length can be customized according to customer requirements)
3. Color: black (other colors can be customized)
4. Material: PU
5. Style: There are many forms of suction cup grounding wire: suction cup + suction cup grounding wire, suction cup + alligator clip grounding wire, suction cup grounding wire + terminal, which can be customized according to requirements.
Instructions for use:

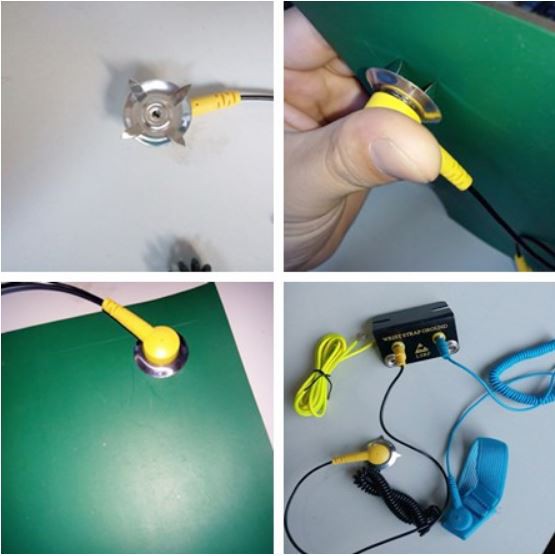

Can be used for anti-static table mat grounding wire: can be equipped with rivets (special equipment installation), equipped with claw nails, easy to directly install on the table mat The other end of the grounding wire is equipped with a banana head and an alligator clip or grounding terminal, which is convenient to insert into the grounding socket and directly clamp the grounding wire.
It is suitable for all kinds of anti-static equipment in electronic industry, safe grounding of work surface, connection between shelf layer and layer, and special equipment that needs to be grounded.
