How to use the anti-static wrist strap alarm and troubleshooting

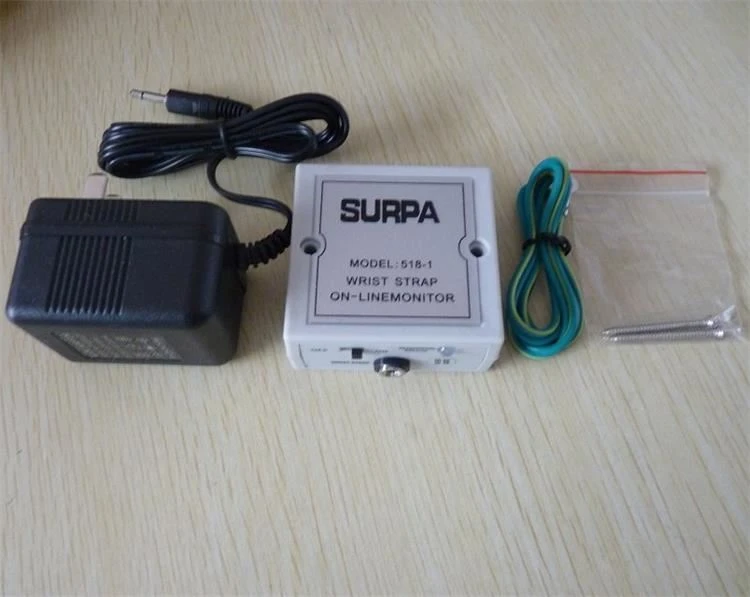

The wrist strap alarm is also called the wrist strap online monitor. It is made of high-precision electronic components. It has the characteristics of high accuracy, fast response, and simple use; it monitors the operator's electrostatic wrist strap wearing status and location in real time. If the line is connected to the earth, it will automatically alarm immediately in case of abnormal conditions.
How to use the wrist strap alarm:
1. Install the wrist strap alarm and anti-static wrist strap monitor under the operating table.
2. Wear the anti-static wrist strap tightly, make the metal sheet close to the skin, and insert the plug of the electrostatic bracelet into the INput hole;
3. Connect one end of the ground wire to the ground, and use an alligator clip to connect to the ground wire;
4. Insert one end of the power adapter into the power input interface, and the other end into the AC 220V power supply, and press the power switch;
Wrist strap alarm troubleshooting:
1. Normal state: green light is on
①The electrostatic wrist strap is in good contact with the hand, and the electrostatic wrist strap and the grounding wire are connected well, and the electrostatic discharge of the human body is smooth.
②Work well, real-time monitoring of the electrostatic wrist strap.
2. Alarm status: the alarm sound and the red light is on, the reason for the bad alarm status, the countermeasures are implemented, the red light is on and the alarm sound
①The wrist strap is off, just wear the wrist strap
②The wrist strap is loose in contact with the hand, and the wrist strap is close to the human skin
③ Dry skin, use anti-static oil for skin
④The wrist strap is damaged, replace the OK wrist strap
⑤Connect the earth wire to fall off, connect the earth wire
⑥ Poor ground wire discharge, check the grounding system
