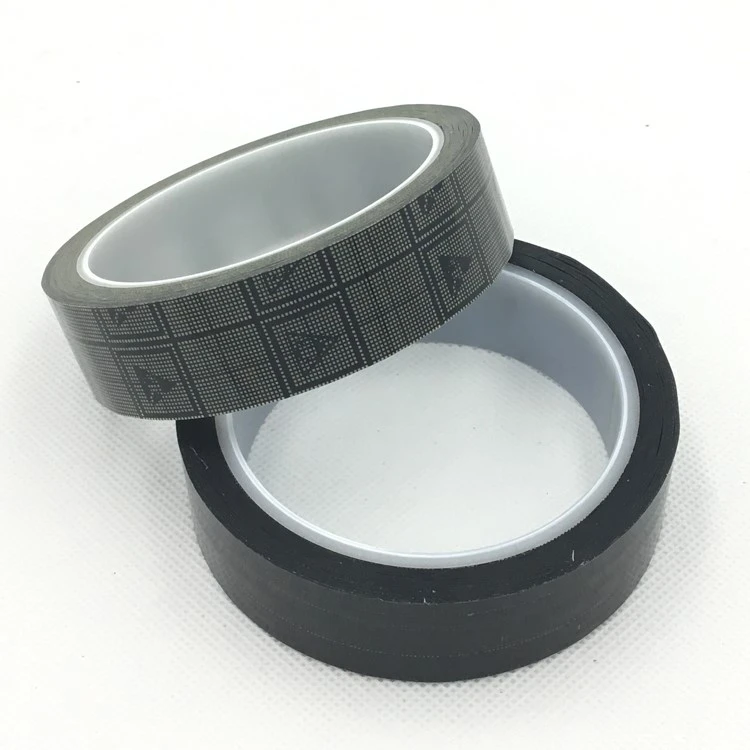

What are the specifications of anti-static ESD grid tape?
The specifications of grid anti-static tape are diverse, mainly covering dimensions such as width, length, thickness, material, color and electrical characteristics, as follows:
Width specification:
Standard width range: 3mm to 960mm can be customized, common specifications include 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, etc.
Length specification:
Standard roll length: mainly 36 meters, large quantity can be customized to 100 meters.
Thickness specification:
The thickness is usually 0.05mm to 0.06mm, and the tolerance is controlled within ±0.002mm.
Material:
The base material is mainly OPP (biaxially oriented polypropylene), and some products use PET (polyester) material to ensure anti-static performance.
Color options:
Black grid is the mainstream, and there are also customized colors such as transparent or silver.
Electrical characteristics:
Surface resistance ranges from 10⁶ to 10^{10}Ω, meeting the requirements of electrostatic discharge.
Customization options:
Supports width slitting (such as 3mm-960mm), length adjustment (10-200 meters), and special specifications (such as PE tube for core material).
The above specifications are based on the summary of common products in the market. When applying specific applications, you can select the adaptation parameters according to your needs.
