What is the purpose of the surface resistance tester
The SL-031 surface resistance tester is mainly used to measure the impedance or resistance of all conductive, antistatic and electrostatic discharge surfaces. The hammer-type surface impedance tester is easy to use, high-quality, and highly reliable. The meter can also measure relative humidity and temperature that affect electrical performance.
Product Description:
The hammer-type surface impedance tester is designed in accordance with EOS/ESD, CECC, ASTM and UL test procedures, and is used to measure the impedance or resistance of all conductive, antistatic and electrostatic discharge surfaces. The hammer-type surface impedance tester is easy to use, high-quality, and highly reliable. The meter can also measure relative humidity and temperature that affect electrical performance.
Measure surface impedance 103-1012Ω/square meter, measure resistance 103-1012Ω
Product function description:
Relative humidity: 10%-90%RH
Temperature: 32. F-100. F(0℃-37.8℃)
High precision: within the full range

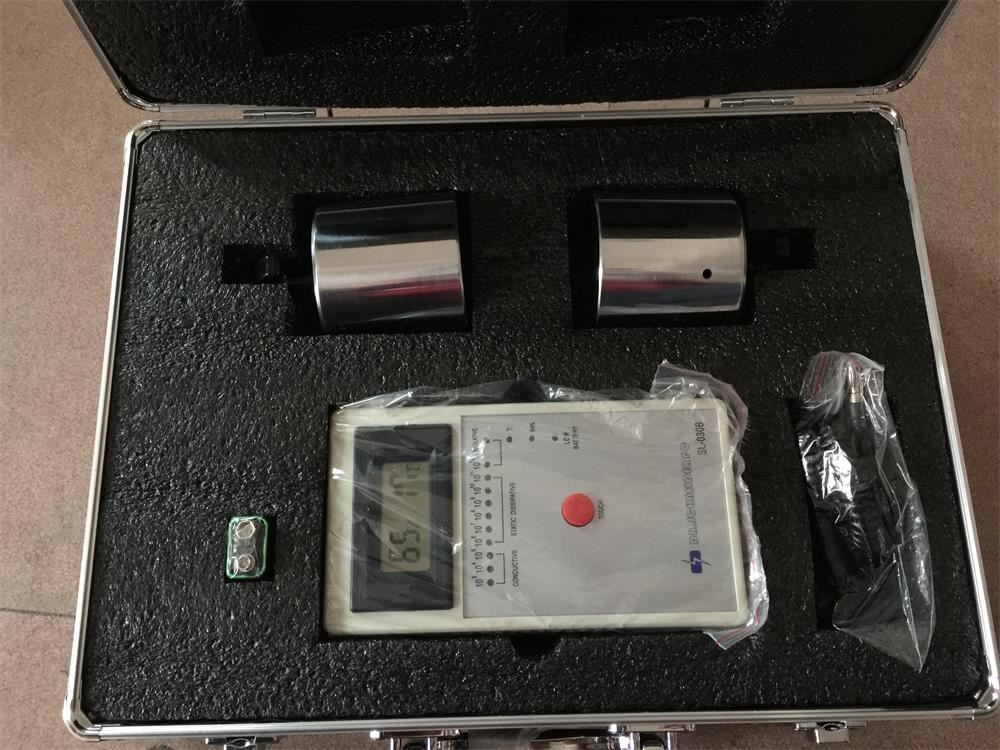

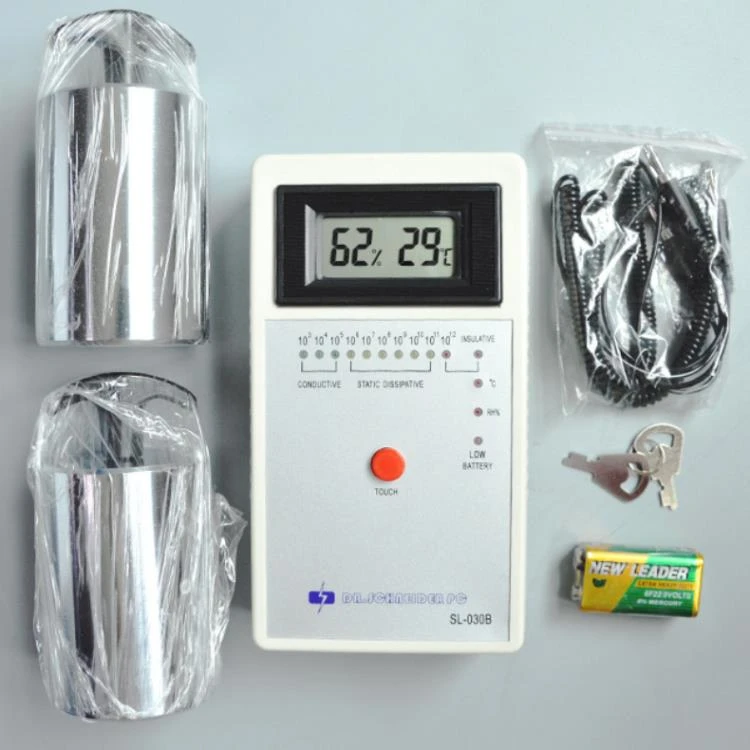

Including electrodes: two 5-pound, 2.5-inch RTT, RTG disc-shaped electrodes, two 3-inch parallel surface impedance test electrodes, LCD digital display
Can measure desk mats, floor coatings, paint finishes, wrist straps, work clothes, shoes (shoe covers), bags and containers
Product physical characteristics:
Measure impedance, temperature and humidity, in line with ESD standards, S4.1, S7.1 and S11.11
103-1012Ω/square meter range, can test the electrical properties of various materials.
The 10V/100V measurement scale is suitable for the work surface and ground specified by the standard.
Plastic instrument protection box to prevent instrument damage
Light weight, only 150Z (425g), easy to carry
LCD digital display, easy to use and easy to read
Automatic power-off function to extend battery life
